JZYuan USB C Type C 3.1 Hub to HDMI Mini DP 3.5mm Audio Ethernet Adapter For Samsung Galaxy S9 Huawei P20 Pro Type-C USB 3.0 HUB

Variants

Ships From:
  • China
  • Russian Federation
Color:
  • With Mini DP
  • Without Mini DP
Shipping:
Processing time 1-5 days
Shipping time from Russian Federation to Russian Federation 4-12 days
Shipping time from China to United States / Europe 7-14 days
Shipping time from China to WW 10-30 days
Shipping cost $3.6 per order
Availability:
60

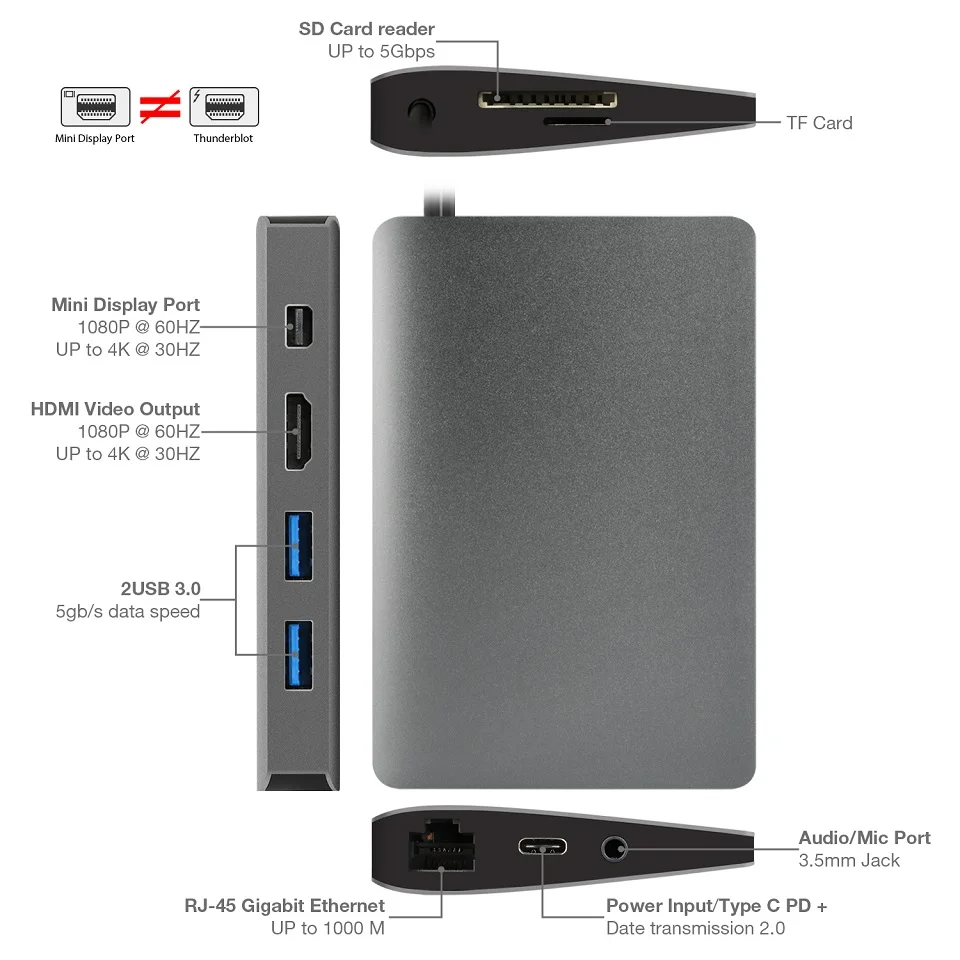

  • Product details
  • Brand Name: JZYuan

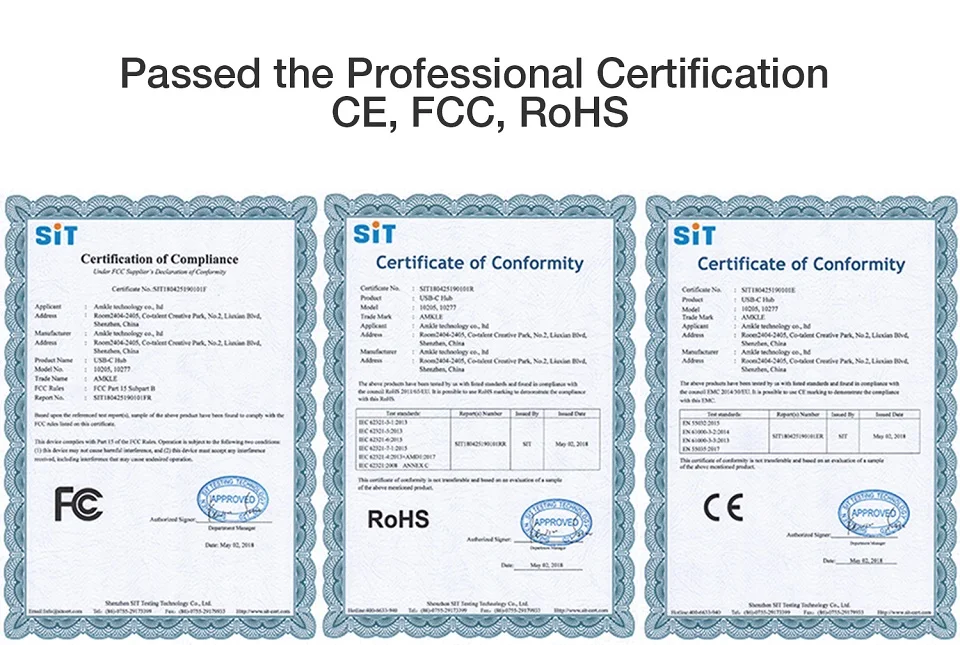

  • Certification: CE RoHS FCC
  • Function 1 : For Macbook
  • Function 2: Huawei P20 Pro
  • Function 3: Samsung S9+/S9/S8+/S8
  • Funtion: HDMI/Card Reader/RJ45
  • HDMI Interface: Support 4K 30Hz and backward compatible
  • Interface Type: USB Type-C
  • Length: <=50cm
  • Mini DP Interface: Support 4K 30Hz and backward compatible
  • Model Number: USB Type C 3.1 to USB 3.0/HDMI/Mini DP/3.5mm Audio/RJ45/Card Reader/PD
  • Note: TF and SD card can read at the same
  • Package: Yes
  • Plug Standard: None
  • Ports: 9
  • Standard: USB 3.1
  • Type 1: USB 3.1 USB C to HDMI
  • Type 3: USB 3.1 USB C to USB 3.0
  • Type 4: USB 3.1 USB C to USB Type C (PD)+Data Transmission
  • Type 5: USB 3.1 USB C to Mini DP

JZYuan USB C Type C 3.1 Hub to HDMI Mini DP 3.5mm Audio Ethernet Adapter For Samsung Galaxy S9 Huawei P20 Pro Type-C USB 3.0 HUB

 Note: This model is with appearance patent in China, patent number :  201730580266.2


Description:

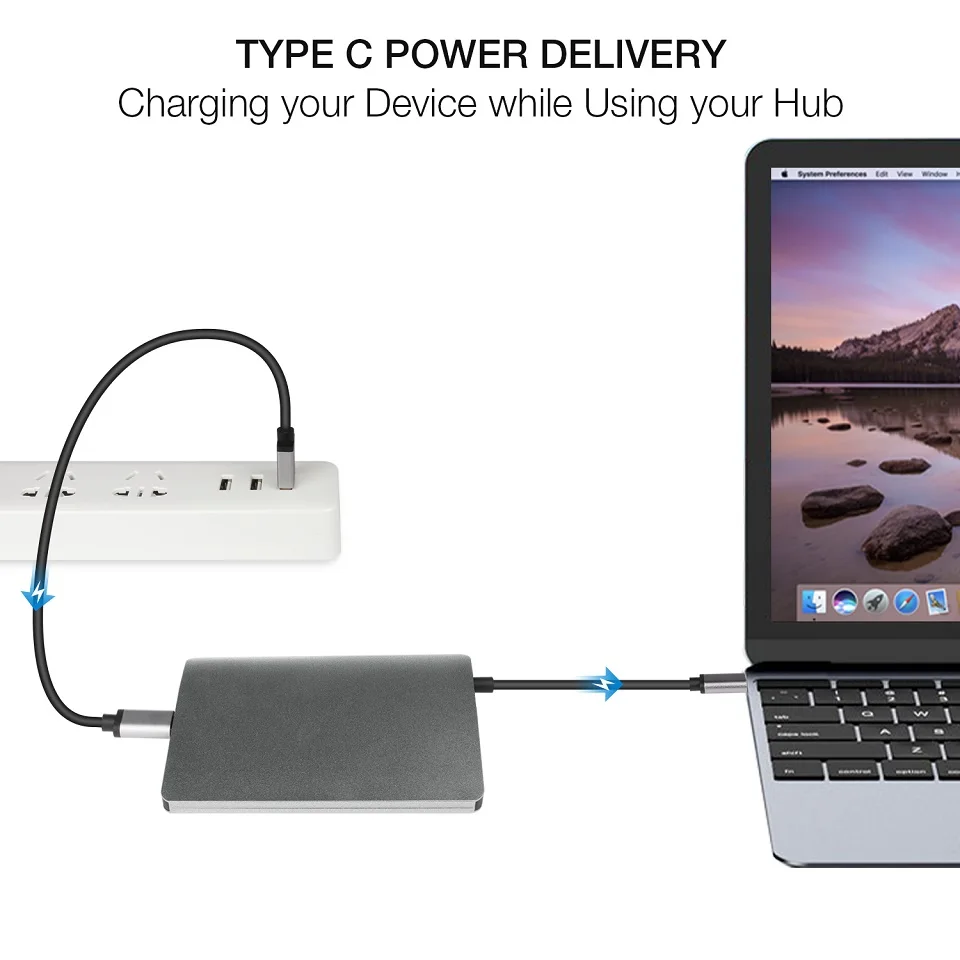

USB-C PD  (suport uplink charging+data transmission )
1. USB-C interface with USB3.1 standard
2.USB-C interface supports forward and reverse plug-in
3. Supports PD charging power up to 60W (20V / 3A)
4. Support Data transmission.
5. The port uses a black plastic core + nickel shell

USB 3.0 Interface
1 using a standard USB-A interface
2 in line with USB3.0 standard 5Gbps / s transmission
3. Support read and write data, U disk, card reader, keyboard, mouse, removable hard disk
Extended External Storage and Data Transfer + Charged SSDs, Digital Cameras, etc.

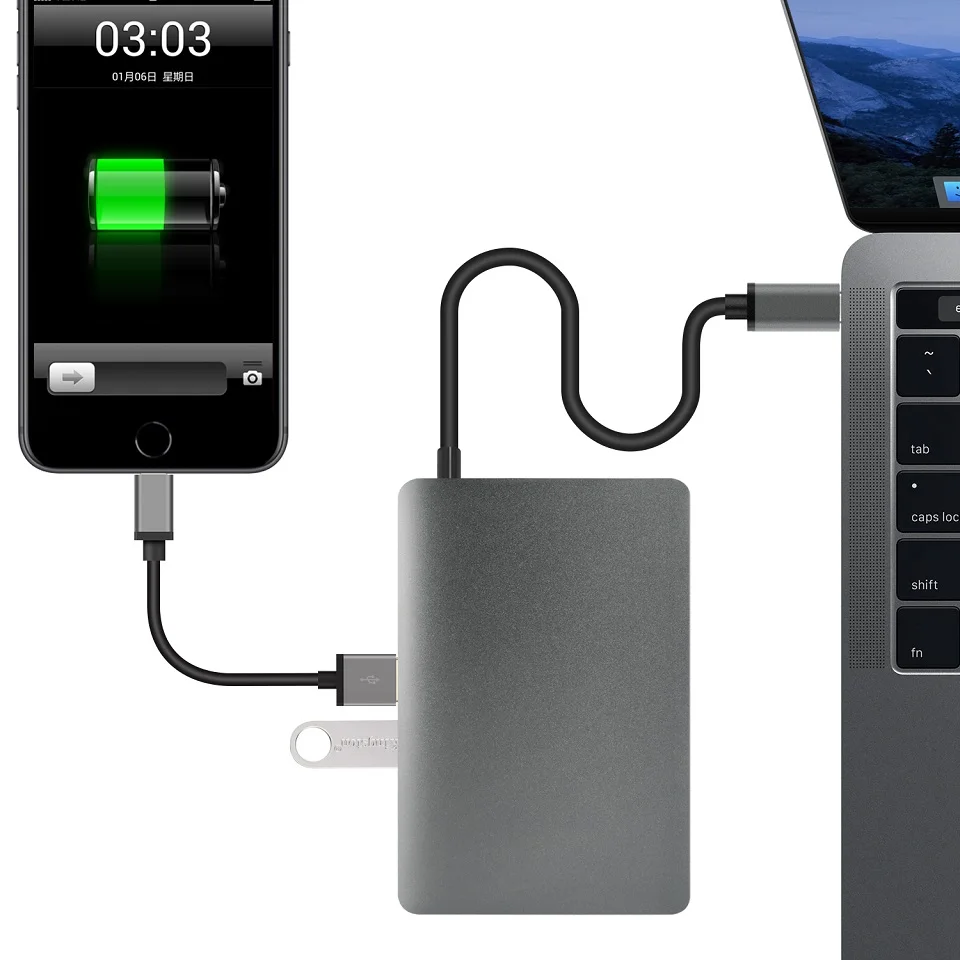

4.USB3.0 single port output power 7.5W (5V / 1.5A) support for mobile phones and other devices to charge
5 using blue plastic core + plating

TF memory card holder
1. Standard TF card slot
2. Using USB 3.0 standard theory to transfer data: 5Gbps / s

SD memory card holder
1. Standard SD card slot
2. Using USB 3.0 standard theory to transfer data: 5Gbps / s.

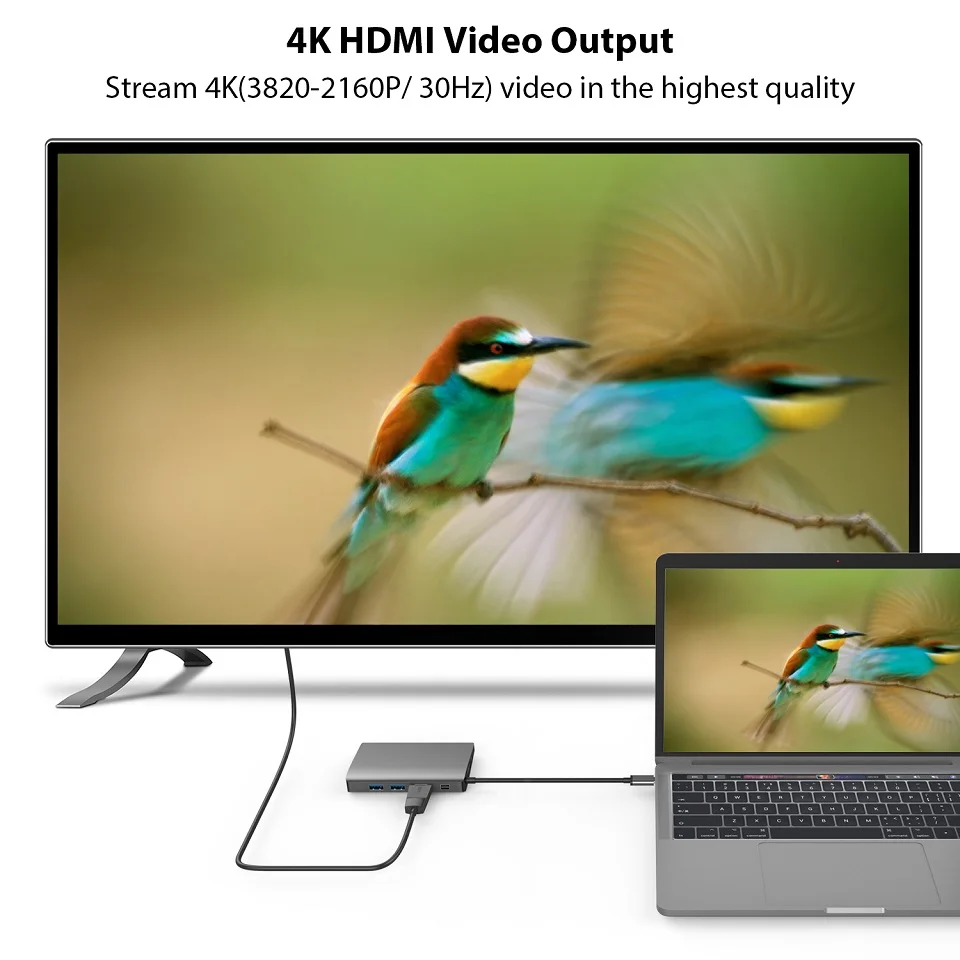

HDMI interface:
1. Using a standard HDMI-A interface
2. Support audio and video transmission, video support 4K * 2K / 30Hz and backward compatible
3. Black plastic core + nickel-plated shell

Mini DP interface   :
1. Using a standard Mini Displayport interface
2. Support audio and video transmission, video support 4K * 2K / 30Hz and backward compatible
3. Only use the Mini DP to Displayport DP line, it can support 4K 30Hz audio and video output.
4.MIni DP port does not support Apple Thunderbolt Display.
5.When you use the Mini Dp interface to connect  Apple LED Cinema Display  monitor, it will  only show 1280*720 resolution  .
6. Black plastic core + nickel-plated shell

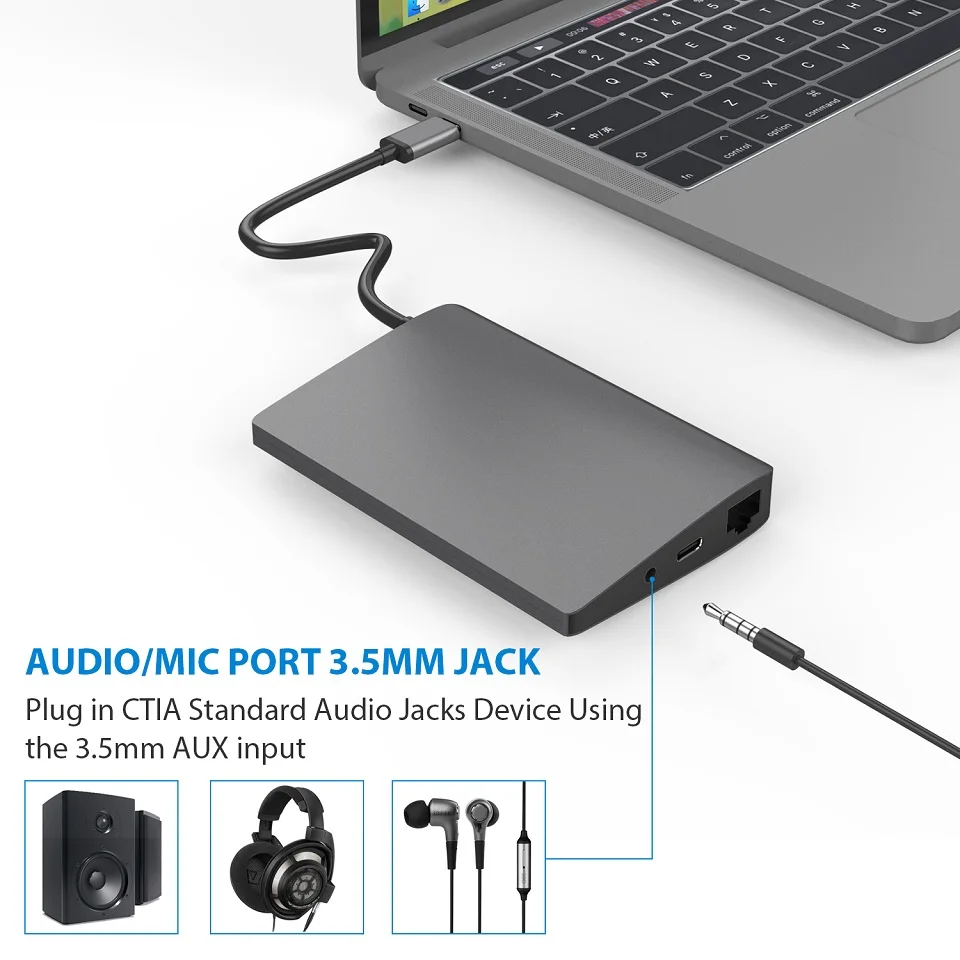

3.5mm audio jack:
1.Earphones and speakers can be connected.
2.Using CTIA Standard.

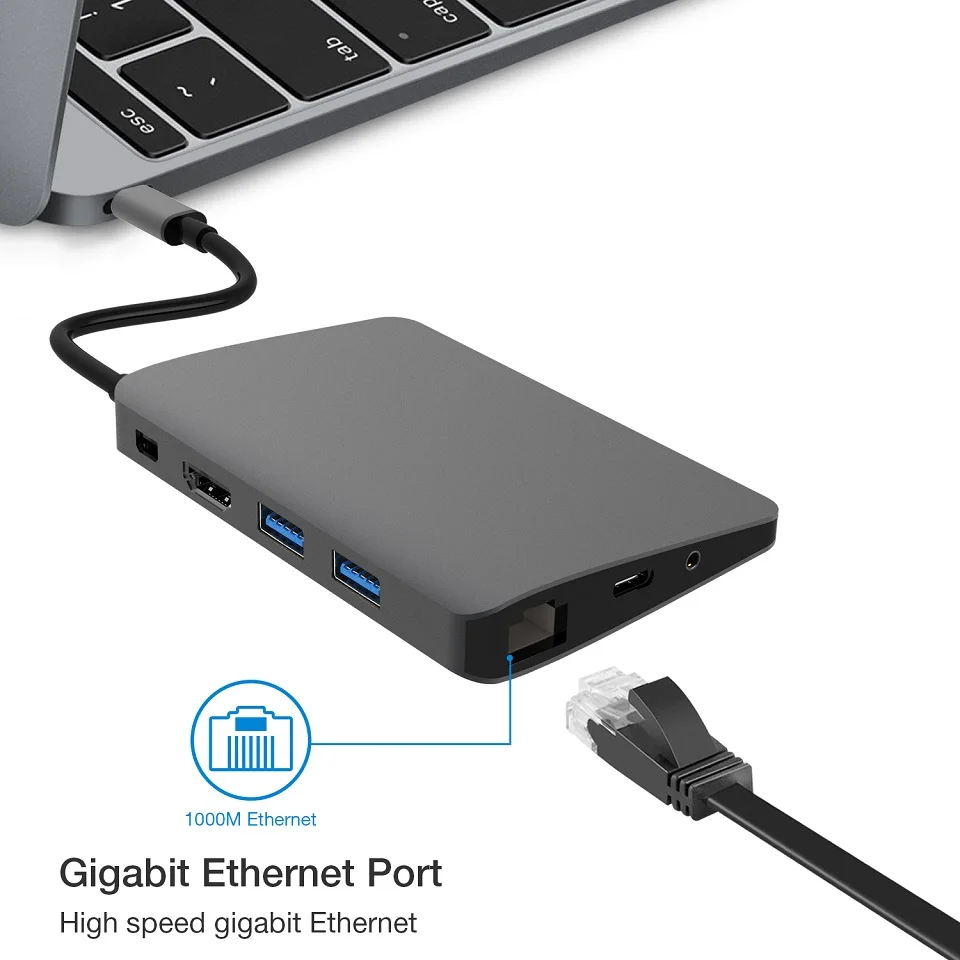

RJ45 interface:
1.  Gigabit RJ45 Support transmission rate with 10/100/1000M


Note:
1.Device must support “DisplayPort Alternate Mode” (DP Alt Mode) via USB-C,not compatible with devices which do not support the protocol of DP Alt Mode.

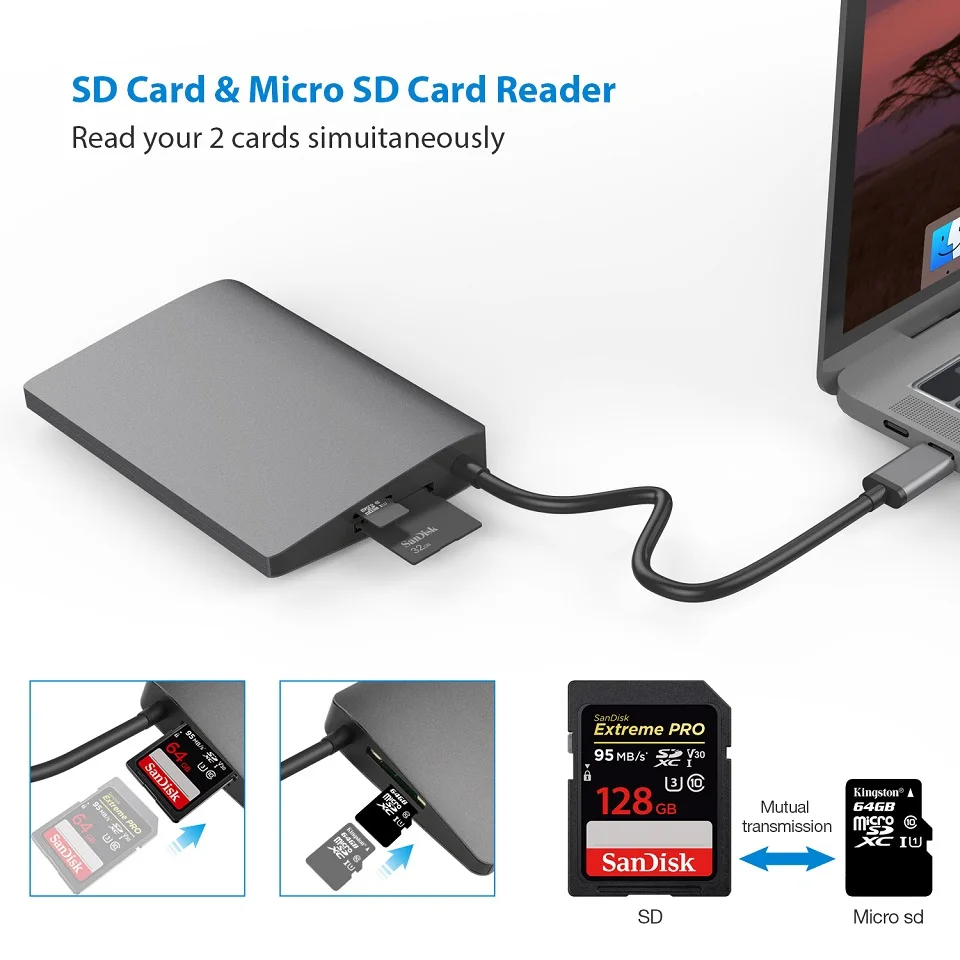

2.TF / SD card with a Muilt-drive letter chip , can be read  two cards at the same time, and data can be transferred to each other.

3.HDMI and Mini DP can not be used at the same time.
When inserted at the same time, it will show Mini DP signal.

4.The hub can not support Samsung DEX mode.

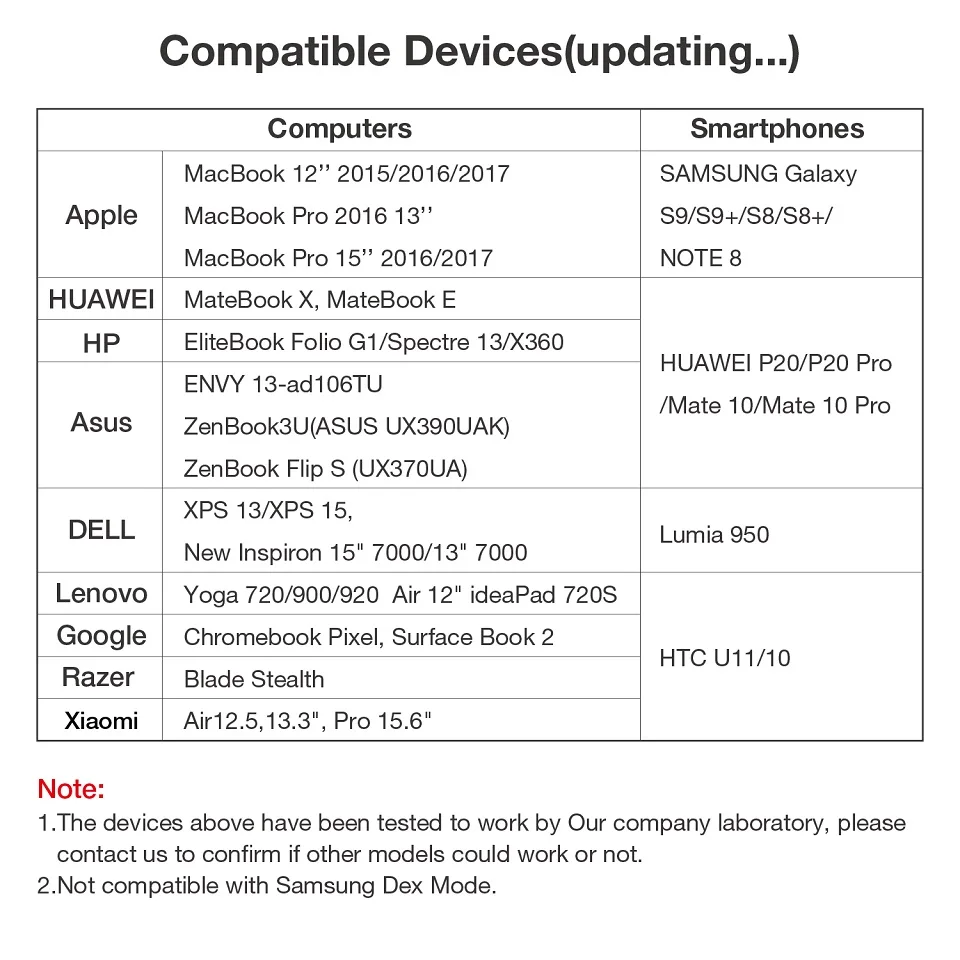

USB Type C Compatible Devices:
MacBook(12-inch,2015/2016/2017)
MacBook Pro 2016 (13"/15” )
MacBook Pro 2017 15"
iMac 2017/ Pro
Lenovo Yoga 720/ 900/ 970
HP EliteBook Folio G1
DELL XPS 13 15
Huawei P20/ P20 Pro
Huawei Mate 10/ Mate 10 Pro/ P20 /P20 Pro
Samsung S8/S8+/S9/NOTE 8
